New 2m EME Setup dated Summer 2011
4 times 9 Element XP by DF7KF
TX always C Pol
RX H V 45+ 45- C

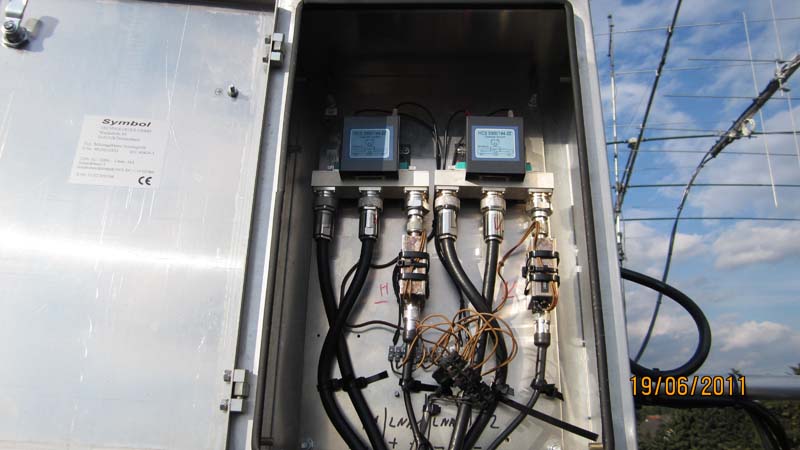

First Picture shows the Control Box with Relais and Preamps
|
|
Second Picture shows the new 4 times 9 Element XP Yagies by DF7KF
|
|

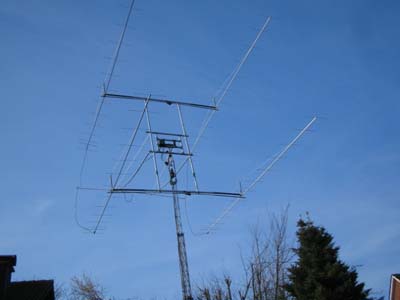

Older Pictures from past Setups
|
4*14DK7ZB Polarity control Ecoflex15 and LNA145MK2 |
Using a Icom IC756PRO2 with LT2SMK2 Transverter |
|

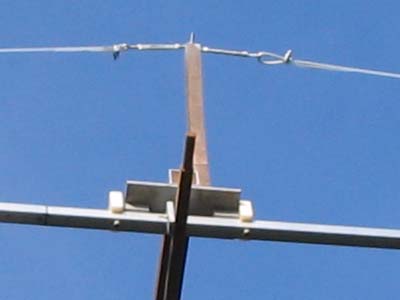

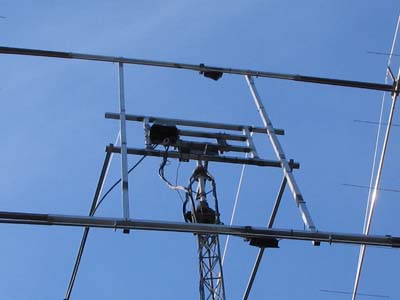

Details for polarity rotation: |
||
 |
 |
 |
|
MY 70CM EME |
Using a TS2000 for 70cm |
